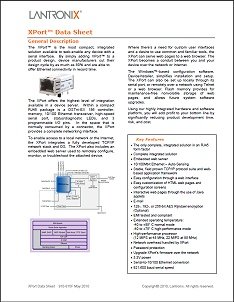

The XPort is a complete solution (hardware and software) for web-enabling your edge devices. Packed into an RJ45 connector smaller than your thumb, this powerful device server comes with a 10BASE-T/100BASE-TX Ethernet connection, a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack, and standards-based (AES) encryption.

REMOTELY MONITOR, MANAGE AND SHARE EQUIPMENT OVER THE NET

THE XPORT™ IS THE MOST COMPACT, INTEGRATED SOLUTION AVAILABLE TO WEB-ENABLE ANY DEVICE WITH A SERIAL INTERFACE. BY SIMPLY ADDING XPORT™ TO A PRODUCT DESIGN, DEVICE MANUFACTURERS CUT THEIR DESIGN CYCLE BY AS MUCH AS 80% AND ARE ABLE TO OFFER ETHERNET CONNECTIVITY IN RECORD TIME.

To enable access to a local network or the Internet, the XPort integrates a fully developed TCP/IP network stack and OS. The XPort also includes an embedded web server used to remotely configure, monitor, or troubleshoot the attached device.

Key Features:

• The only complete, integrated solution in an RJ45 form factor
• Complete integrated solution
• Embedded web server
• 10/100Mbit Ethernet – Auto-Sensing
• Stable, field proven TCP/IP protocol suite and web-based application framework
• Easy configuration through a web interface
• Easy customization of HTML web pages and configuration screens
• Interactive web pages through the use of Java applets
• E-mail
• 128-, 192-, or 256-bit AES Rijndael encryption (Optional)
• EMI tested and compliant
• Extended operating temperature: -40 to +85˚ C normal mode -40 to +75˚ C high-performance mode
• High-performance processor (12 MIPS at 48 MHz, 22 MIPS at 88 MHz)
• Network overhead handled by XPort
• Password protection
• Upgrade XPort’s firmware over the network
• 3.3V power
• Serial-to-10/100 Ethernet conversion
• 921,600 baud serial speed
